Accident statistics display: UNF-IN-14C; 1-line; 57mm character height; Indoor-/Semi-Outdoor range

General

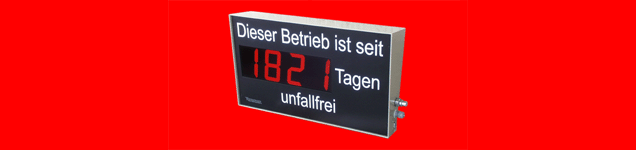

The accident statistics displays „UNF-IN-14C“ serves the visualization of accident-free days. The display has a character height of 57mm and can be elected in the character colours „Red, yellow, green, white and blue“.For the optional fixed text ( here e.g.: This facility ......) is a placeholder above and below as well as next to the numeric display scheduled. The accident statistics displays „UNF-IN-14C“ is deliverable in execution case or execution front mounting.
Pluggable LED modules guarantee an extremely favourable spare part obtaining.
The brightness is separated adjustably for every LED number. Brightness differences which can give up because of the physical conditions after longer operating time are therefore compensable.

Operating possibilities of the accident statistics displays „UNF-IN-14C“
- Autarkic drive: The display works autarkic at this drive. Daily at 24.00/0.00 hour the value of the display is incremented +1. At a possible work accident the display value can be setted manually on „Null“ by a reset button. By a further button the display value can be setted manually. Optionally the Reset button and the manually value setting can be carried out by a radio remote control. Additional exists the possibility to force the current time as well as the display value by a PC-Menue (WINDOWS). The display data get remained at a failure of the power supply.

- Serial per RS232, RS485, RS422, USB2.0, Ethernet TCP/IP 10/100, radiotransmission
