Counter
display : Series ALN

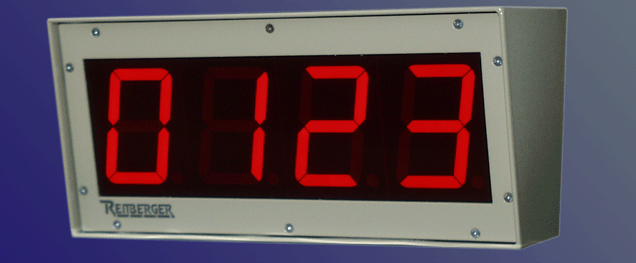

100; Indoor, 100mm character height, BCD, ZV, ZR and RESET / LED
The
counters displays of the type ALN-100 serve to display numeric
results. They are deliverable in single- and multiline execution
with respectively 2 to maximum 12 digits. The supply and signal
voltage is 24VDC. For
types and order number see broadsheet.
Fuction:
The value being on at the BCD inputs is reported. For this the
input "CNT" is to connect with 0V.
With
a positive flank +24V at the inputs "INK" or "DEC"
is inkremented +1 or decremented -1.
For the function "INK" or "DEC" the input
of "CNT" is to connect with +24V..
With
a positive flank +24V at the input "CLR" the display
is to "ZERO".
