General
Truck call displays are an imperative tool, to carry out the
load and unload of trucks efficiently and economically. The

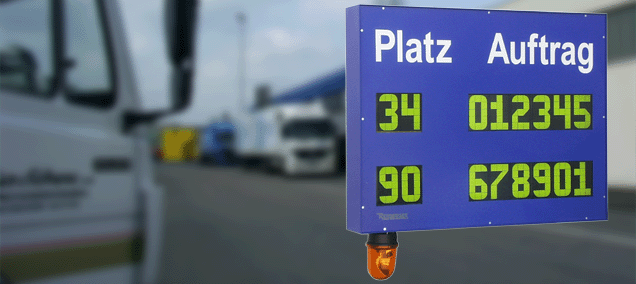

truck call display " TRUCK 28-160 " looks after
the required summary. It shows two different truck calls simultaneously.
Each of the two display lines has 6 characters for an identical
number plus 2 characters for the truck position (position
number). A flashing all around-luminary at the case underside
signals the truck drivers an information change. The switching
duration of the all around luminary is alterable.
The drive of the truck call display is carried out serially
via a RS 485 interface, optional via Ethernet
TCP/IP with the Reitberger-Standard protocol. A customization
to a predefined transmission protocol is optionally possible.
